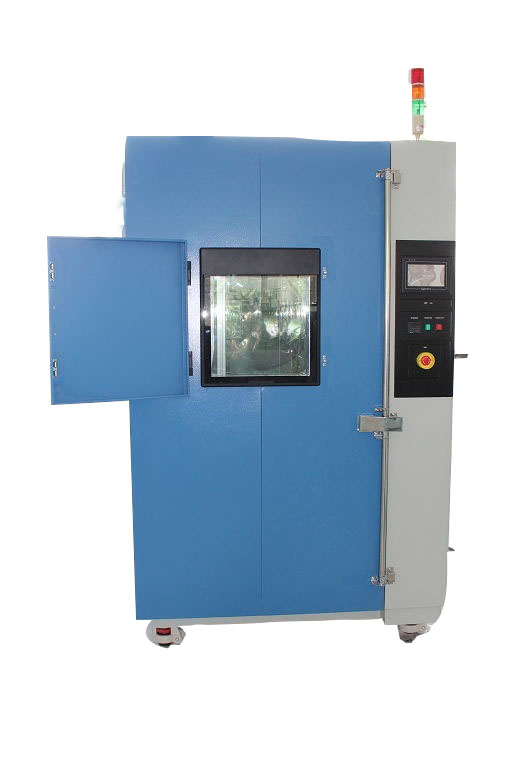

HST-UV-2000 UV Test Chamber
Description
HST-UV-2000 UV Test Chamber
Features
- Hermetic [2.0HP] - Single Compressor
- Unique Air Flow System to Create a Uniform & Constant Circulation of Air
- Stainless Steel, Electronic Heater
- Uses a 3Kw Air-cooled Xenon Lamp (The spectrum energy distribution of this source is typically very close or similar to the natural solar spectrum. Also, the radiation strength can be automatically controlled.)
- Solar Radiation Sensor
- LED Control System (Radiation Strength Display, Temperature Control, Sensor is a Pt-100)
- Over Temperature protection
- Short Circuit protection
- High Pressure protection
- Door Open Sensing turns off UV Lamps
Specifications
Specification | Specification in US | Specification in Metric |
---|---|---|
Temperature Range | Room Temp +77 °F to +140 °F ±41 °F | Room Temp +25 °C to +60 °C ±5 °C |
Radiation Strength | 800 to 1200 ±10% W/m²(adjustable) | 800 to 1200 ±10% W/m²(adjustable) |
Wavelength | 280 to 3000 nm | 280 to 3000 nm |
Irradiation Uniformity | ||
Interior Dimension | 31.5W x 78.7H x 49.2D IN | 800W x 2000H x 1250D mm |
Exterior Dimension | 49.2W x 86.6H x 59.1D IN | 1250W x 2200H x 1500D mm |
Interior Material | Stainless Steel Plate (SUS#304, Mist) | Stainless Steel Plate (SUS#304, Mist) |
Weight | Approximately ??? lbs | Approximately ??? Kg |
Radiation Strength Test | ??? to ???? ±10% W/m² | ??? to ???? ±10% W/m² |
Test Temp Range | ?? to ??? °F | ?? to ??? °C |
Test Duration/Time | ?? | ?? |
Power | 440VAC/60Hz/3-Phase | 440VAC/60Hz/3-Phase |
