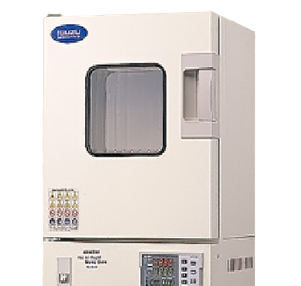

EPR-114 /111/113/115/220 EPR Oven

Description

EPR-114 Oven
EPR-111 Oven
EPR-113 Oven
EPR-115 Oven
EPR-220 Oven

Features

  • Hot Air Circulation Method
  • JIS K-Type, Thermo Couple Temperature Sensor
  • Sheathed Heater (SUS-304)
  • 2 Shelf Racks (Up to 15 kg/rack)
  • Top Exhaust Outlet Port (Diameter: 35 mm)
  • Left Side Cable Access Port (Diameter: 35 mm)
  • RS-485 Communication Option

Specifications

Specification Specification in US Specification in Metric
Temperature Range 104 to 500 °F 40 to 260 °C
Time to Reach Max. Temp. 50min 50min
Temp Distribution Accuracy +/- 1.5 °F at 212 °F +/- 2.5 °F at 392 °F +/- 3.0 °F at 500 °F +/- 1.5 °C at 100 °C +/- 2.5 °C at 200 °C +/- 3.0 °C at 260 °C
Heater Wattage 1.4 KW 1.4 KW
Inside Cubic Volume 24.04 GAL 91 Liters
Interior Dimension 17.72W x 17.72D x 17.72H IN 450W x 450D x 450H mm
Exterior Dimension 29.53W x 25.04D x 35.67H IN 750W x 636D x 906H mm
Observation Window 7.87W x 15.75H IN 200W x 400H mm
Interior Construction Stainless Steel SUS-304 Stainless Steel SUS-304
Weight 125.66 lbs 57 Kg
Power Supply Voltage 100VAC/Single-Phase 100VAC/Single-Phase
Max. Power Consumption 1.2 KVA 1.2 KVA

Models

Available Models

  • EPR 111
  • EPR 114
  • EPR 113
  • EPR 115
  • EPR 220
